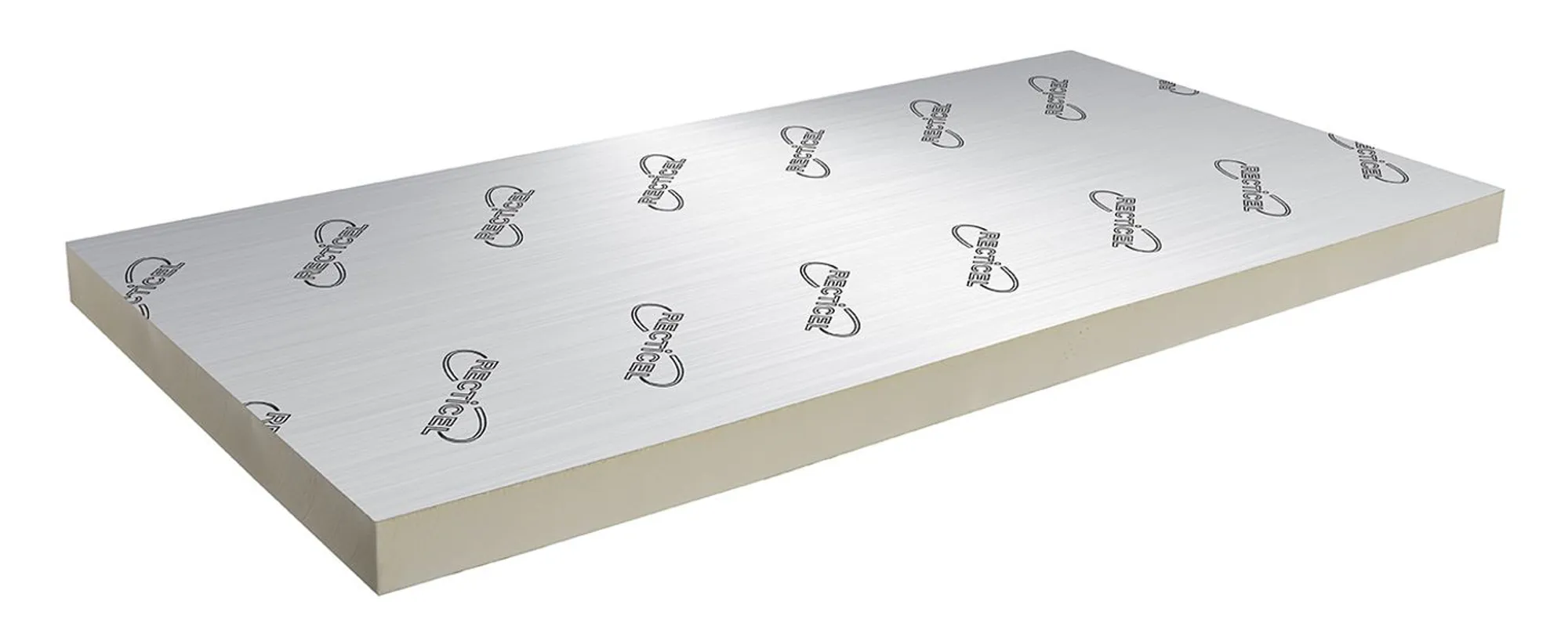

Eurothane GP PIR Insulation Board (1200 x 2400)
Rigid PIR insulation boards. Board size 1200 x 2400mm (2.88m²). Sold per sheet.
Eurothane GP board
Eurothane GP board is a high performance polyisocyanurate (PIR) insulation, perfectly suited to multiple applications, roof, wall, and floor
PIR boards benefit from a closed cell structure making them very thermally efficient and non-water absorbing.
With zero Ozone Depletion Potential (ODP) and a Global Warming Potential (GWP) of below 5, this high-quality product offers energy saving benefits to the entire building. It will not sag or absorb moisture, is resistant to vermin and will consistently perform for the lifetime of the building.
Lightweight, easy to cut, handle and install, the board is available in a variety of thicknesses to suit your precise specification and ensure you meet and exceed thermal regulations.
Specifications
Thermal Conductivity (y-Value): 0.022 W/m.K
Product Dimensions: 2400 x 1200mm (2.88 m²)
Compression Strength: Exceeds 140kPa at yield
Fire Performance: Class 1 BS 476 (Part 7)
Warranty: 10 Years
Eurothane GP Specifications PDF
Thickness & R-Value
| Thickness | R-Value |
| PIR 25mm | R 1.10 |
| PIR 40mm | R 1.80 |
| PIR 50mm | R 2.25 |
| PIR 60mm | R 2.70 |
| PIR 70mm | R 3.15 |
| PIR 75mm | R 3.40 |
| PIR 90mm | R 4.05 |
| PIR 120mm | R 5.45 |
| PIR 140mm | R 6.35 |
| PIR 150mm | R 6.80 |
